USNU12 Sprag Freewheels One Way Clutch Bearing

Name: USNU12 Sprag Freewheels One Way Clutch Bearing
Brand: SUMA
Price: 60 USD

Brand Name : SUMA

Model Number : FPD442Z

Certification : ISO SGS

Place of Origin : CHINA

MOQ : 5pcs

Price : USD60-USD70 PER PIECE

Payment Terms : L/C, D/A, D/P, T/T, Western Union, Paypal

Supply Ability : 1000PCS Per Month

Delivery Time : 5-7 Days

Packaging Details : Carton Box

Product Name : One Way Clutch Bearing FPD442Z

Material : GCr15 Bearing Steel

Torque Capacity : 84Nm

Rotation Speed : 2000RPM

Unit Weight : 0.09Kg

Warranty : 1 Year

Size : 15*31*34mm

OEM : Accept

MOQ : 5-

Contact Now

USNU12 Sprag Freewheels One Way Clutch Bearing

Features

This series freewheels are not self-centering. It is therefore necessary to place one or two bearings next to the freewheel so that the outer race can rotate centrally to the inner race. USNU freewheels have ball bearings with the same dimensions as the 63.. Series.
The torque forces are transmitted from the shaft to the inner race by means of a key and from the outer race to the seating by means of front pullers or by means of an interference fit if the seating tolerance is made a K6.
Shaft tolerance must be either h6 or j7; the tolerances for the seating must be either h7 or F7. When front pullers are not used, the seating tolerance should be k6.
Before being put onto service, the freewheels must be lubricated with suitable lubricants following the instructions given on page 12. Oil lubrication is essential when a high number of rotations in neutral is reached.

Width:34 mm

Operating temperature: max. 100° C

Lubrication: Operative lifetime oil lubrication

Installation tolerances: Shaft h5; hub H6

Dimensions and Capacities

Model	d	D	W	Tnom	nmax	Cdyn.	Cstat.	Weight	Item no.
Model	[mm]	[mm]	[mm]	[Nm]	[rpm]	[N]	[N]	[kg]	Item no.
FPD 427 M	15	31	34	94	2,000	7,679	6,397	0.09	306516
FPD 427 Z	15	31	34	84	2,000	7,679	6,397	0.09	306517
FPD 432 M	20	36	34	133	1,800	8,104	7,241	0.12	306518
FPD 432 Z	20	36	34	121	1,800	8,104	7,241	0.12	306519
FPD 437 M	25	41	34	176	1,700	9,201	8,142	0.15	306520
FPD 437 Z	25	41	34	160	1,700	9,201	8,142	0.15	306521
FPD 442 M	30	46	34	223	1,500	10,247	10,708	0.18	300696
FPD 442 Z	30	46	34	208	1,500	10,247	10,708	0.18	300697
FPD 448 M	35	53	34	286	1,300	11,642	13,440	0.23	306524
FPD 448 Z	35	53	34	262	1,300	11,642	13,440	0.23	306525
FPD 453 M	40	58	34	343	1,200	11,417	13,577	0.26	300702
FPD 453 Z	40	58	34	314	1,200	11,417	13,577	0.26	300700
FPD 463 M	50	68	34	461	1,100	13,070	17,063	0.34	306534
FPD 463 Z	50	68	34	428	1,100	13,070	17,063	0.34	306535
FPD 473 M	60	78	34	588	1000	14128	19896	0.41	306536
FPD 473 Z	60	78	34	543	1000	14128	19896	0.41	306537

Pictures

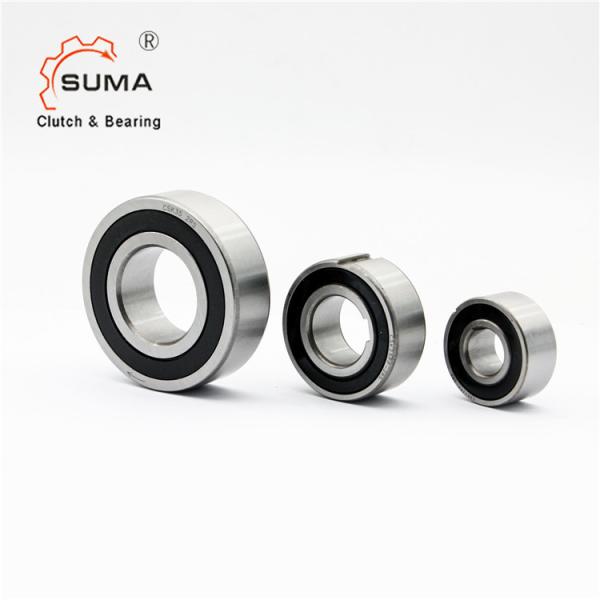

USNU12 Sprag Freewheels One Way Clutch Bearing
