BSEU40-35 450RPM One Way Freewheel Clutch Bearing Replacement For Conveyor System

Brand Name : SUMA

Model Number : BSEU40-35

Certification : ISO SGS

Place of Origin : CHINA

MOQ : 1

Price : USD100-USD130 PER PIECE

Payment Terms : L/C, D/A, D/P, T/T, Western Union, Paypal

Supply Ability : 1000PCS Per Month

Delivery Time : 7-10 Days

Packaging Details : Carton Box / Wooden Box

Product Name : Backstop Clutch

Material : GCr15 Bearing Steel

Torque Capacity : 1440Nm

Rotation Speed : 450RPM

Unit Weight : 3.78Kg

Size : 30*118*55mm

Warranty : 1 Year

OEM : Accept

Contact Now

BSEU40-35 Backstop Clutch One Way Freewheel Bearing for Conveyor System

Features of BSEU backstop Clutch

BSEU Series Cam Clutch was developed as a user-friendly backstopping Cam Clutch. It has cam and roller construction which is the same as the smaller size BS Series Cam Clutch. The outer race has a special shape which combines the torque arm providing easy installation. These Cam Clutches are shipped pre-lubricated with grease and ready for installation. Most often used as a backstop in applications where limited space is available.

Dimensions and Capacities of BSEU backstop Clutch

Item BSEU40-35
Material GCr15
Bore dia. 35 mm
Outer dia. 118 mm
Width 55 mm
Torque capacity 1440 N.m
Overrunning limiting speed 150 r/min
Weight 3.75 kg
Package Carton box, wooden box or as your requirements

Model Bore Size Torque
(N·m)		 Max.
Overrunning
(r/min)
Inner Race		 D D2 L1 L B F b N E J W. MIN W. Max
Dia
( H7)		 Keyway
BSEU25-20 20 6×2.8 216  500 83 42 35 12 40 90 15 35 5 1 0.999 0.948
BSEU25-25 25 8×3.3 216  500 83 42 35 12 40 90 15 35 5 1
BSEU40-20 20 6×2.8 1,440  450 118 60 55 15 40 110 15 35 8 1.5 3.781 3.363
BSEU40-25 25 8×3.3 1,440  450 118 60 55 15 40 110 15 35 8 1.5
BSEU40-30 30 1,440  450 118 60 55 15 40 110 15 35 8 1.5
BSEU40-35 35 10×3.3 1,440  450 118 60 55 15 40 110 15 35 8 1.5
BSEU40-40 40 12×3.3 1,440  450 118 60 55 15 40 110 15 35 8 1.5
BSEU70-45 45 14×3.8 3,140  350 165 90 59 20 80 140 18 35 10 1.5 7.607 6.541
BSEU70-50 50 3,140  350 165 90 59 20 80 140 18 35 10 1.5
BSEU70-55 55 16×4.3 3,140  350 165 90 59 20 80 140 18 35 10 2
BSEU70-60 60 18×4.4 3,140  350 165 90 59 20 80 140 18 35 10 2
BSEU70-65 65 3,140  350 165 90 59 20 80 140 18 35 10 2
BSEU70-70 70 20×4.9 3,140  350 165 90 59 20 80 140 18 35 10 2
BSEU90-75 75 4,700  250 190 120 63 20 80 165 20 40 15 2 10.046 9.265
BSEU90-80 80 22×5.4 4,700  250 190 120 63 20 80 165 20 40 15 2
BSEU90-85 85 4,700  250 190 120 63 20 80 165 20 40 15 2
BSEU90-90 90 25×5.4 4,700  250 190 120 63 20 80 165 20 40 15 2

BSEU40-35 450RPM One Way Freewheel Clutch Bearing Replacement For Conveyor System
Mounting and Coupling of BSEU backstop Clutch
BSEU40-35 450RPM One Way Freewheel Clutch Bearing Replacement For Conveyor System

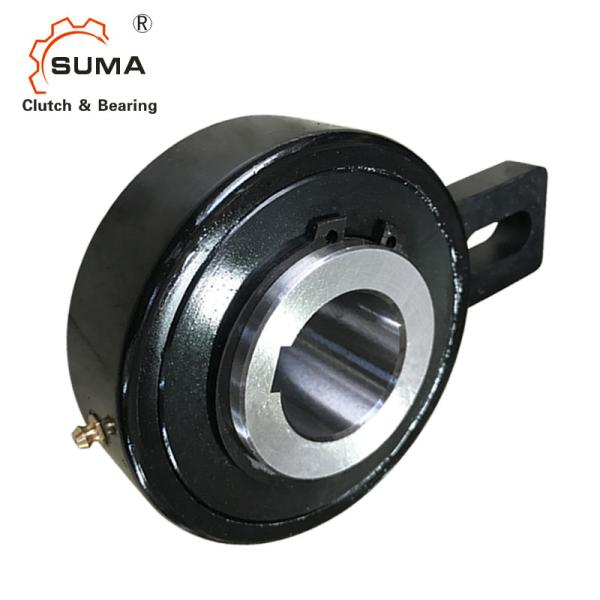

Pictures of BSEU backstop Clutch
BSEU40-35 450RPM One Way Freewheel Clutch Bearing Replacement For Conveyor System
BSEU40-35 450RPM One Way Freewheel Clutch Bearing Replacement For Conveyor System
