FND463Z FND473Z Freewheel Clutch Bearing One Way Backstop Clutch

Brand Name : SUMA

Model Number : FND463Z FND473Z

Certification : ISO SGS

Place of Origin : CHINA

MOQ : 1

Price : USD110-USD150 PER PIECE

Payment Terms : L/C, D/A, D/P, T/T, Western Union, Paypal

Supply Ability : 1000PCS Per Month

Delivery Time : 3-7 Days

Packaging Details : Carton Box

Product Name : Roller Clutch Bearing FND463Z FND473Z

Material : GCr15 Bearing Steel

Torque Capacity : 462Nm

Rotation Speed : 1100RPM

Unit Weight : 0.6Kg

Warranty : 1 Year

Size : 35*63*34mm

OEM : Accept

Contact Now

FND463Z FND473Z Freewheel Clutch Bearing One Way Backstop Clutch

Features

Width 34 mm
Operating temperature max. 100°C
Lubrication Operative lifetime oil lubrication
Installation tolerances
Shaft js6 (k5); hub H6
Mating parts
Hardening and grinding of the mating parts is not necessary.
Thoroughly clean (grease free) the mating parts in the vicinity of the freewheel clutch as well as the freewheel clutch's rings before making the press fit.
Bearing
The freewheel clutch includes ball and roller bearings. Additional external bearing support is not necessary.
Press fit pressure
Press fit pressure must not be applied to the balls.
Clamping direction
The arrow on the inner ring designates the inner ring's clamping
direction.

Technical Datas

Item FND463Z
Material ST14
Bore dia. 35 mm
Outer dia. 68 mm
Width (B) 34 mm
Torque capacity 462 N.m
Overrunning limiting speed (inner race) 1100 r/min
Weight 0.6 kg
Package Carton box or as your requirements

Dimensions and Capacities

FND463Z FND473Z Freewheel Clutch Bearing One Way Backstop Clutch

Designation d D W Tnom nmax Cdyn. Cstat. Weight b t Item no.
[mm] [mm] [mm] [Nm] [rpm] [N] [N] [kg] [mm] [mm]
FND 437 M 15 41 34 176 1,700 8,962 8,661 0.24 5 2.3 300737
FND 437 Z 15 41 34 161 1,700 8,962 8,661 0.24 5 2.3 300738
FND 442 M 20 46 34 223 1,500 10,247 10,708 0.28 6 2.8 300743
FND 442 Z 20 46 34 208 1,500 10,247 10,708 0.28 6 2.8 300744
FND 453 M 25 58 34 343 1,200 11,417 13,577 0.46 8 3.3 300751
FND 453 Z 25 58 34 314 1,200 11,417 13,577 0.46 8 3.3 300752
FND 459 M 30 64 34 411 1,100 12,691 16,320 0.55 8 3.3 300758
FND 459 Z 30 64 34 381 1,100 12,691 16,320 0.55 8 3.3 300760
FND 463 M 35 68 34 462 1,100 13,070 17,063 0.6 10 3.3 306528
FND 463 Z 35 68 34 428 1,100 13,070 17,063 0.6 10 3.3 306529
FND 470 M 40 75 34 550 1,000 14,050 19,840 0.69 12 3.3 300765
FND 470 Z 40 75 34 509 1,000 14,050 19,840 0.69 12 3.3 300766
FND 473 M 45 78 34 588 1,000 14,128 19,896 0.73 14 3.8 306532
FND 473 Z 45 78 34 543 1,000 14,128 19,896 0.73 14 3.8 306533

Pictures

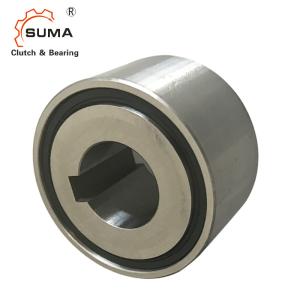

FND463Z FND473Z Freewheel Clutch Bearing One Way Backstop Clutch

FND463Z FND473Z Freewheel Clutch Bearing One Way Backstop Clutch
